1.4. GPU Types and Use Cases

The Kempner AI cluster provides several NVIDIA GPU types, each with different memory capacity, memory bandwidth, compute throughput, and numerical-precision support. This page compares the GPUs available on the cluster and gives guidance on choosing the right one for common AI and NeuroAI workloads. The four types are the A100 40GB, H100 80GB, H200 141GB, and RTX PRO 6000 Blackwell Server Edition (RTX6000).

1.4.1. GPUs Available on the Kempner Cluster

Each GPU type is served by its own SLURM partition, and the RTX6000 nodes hold twice as many GPUs per node as the others.

GPU	Architecture	SLURM partition	GPUs per node
A100 40GB	Ampere	kempner	4
H100 80GB	Hopper	kempner_h100	4
H200 141GB	Hopper	kempner_h200	4
RTX6000 96GB	Blackwell	kempner_rtx	8

See also

For node counts and the physical hardware layout, see Overview of the Kempner Cluster. For partition time limits and job submission syntax, see Understanding SLURM and Job Submission Basics.

1.4.2. Specifications at a Glance

Each column header links to the official NVIDIA datasheet the values are drawn from.

Specification	A100 40GB	H100 80GB	H200 141GB	RTX6000 96GB
Architecture	Ampere	Hopper	Hopper	Blackwell
Tensor Core generation	3rd	4th	4th	5th
Memory	40 GB HBM2	80 GB HBM3	141 GB HBM3e	96 GB GDDR7
Memory bandwidth	1,555 GB/s	3,350 GB/s	4,800 GB/s	1,597 GB/s
FP8 support	No	Yes	Yes	Yes
FP4 support	No	No	No	Yes
RT Cores	No	No	No	Yes (4th gen)
Transformer Engine	No	Yes	Yes	Yes (2nd gen)
GPU-to-GPU link	NVLink	NVLink	NVLink	PCIe Gen5
Partition	kempner	kempner_h100	kempner_h200	kempner_rtx

1.4.3. Understanding the Key Differences

Four properties drive most GPU choices:

• Memory capacity sets the largest model and batch size that fit on one GPU. The A100 (40 GB) holds the least and the H200 (141 GB) the most, which matters for large models and long context windows.

• Memory bandwidth sets the speed of memory-bound work such as large-batch training and inference. The H200 (4,800 GB/s) leads, followed by the H100; the A100 and RTX6000 are lower.

• Numerical precision sets which low-precision math the Tensor Cores accelerate. Lower precision gives faster compute and a smaller memory footprint.

• Interconnect sets how fast GPUs exchange data. NVLink on the A100, H100, and H200 is much faster than the PCIe link on the RTX6000, which matters when one model is sharded across many GPUs.

Note

FP8 speeds up training and inference of large models at reduced precision. It is available on the H100, H200, and RTX6000, but not on the A100.

Important

FP4 is available only on the RTX6000, whose Blackwell architecture adds it. It is the format to reach for in low-precision and quantization research, an area where software support is still maturing. The H100 and H200 do not support it.

Note

The RTX6000 is the only GPU here with RT Cores, which accelerate ray tracing. This helps robotics and reinforcement learning that depend on simulation and rendering, and any visual-rendering workload.

Warning

The RTX6000 connects to other GPUs over PCIe Gen5 rather than NVLink. For jobs that shard one model across many GPUs, the NVLink-equipped A100, H100, and H200 scale more efficiently.

Note

Across nodes, the cluster network is non-blocking for the kempner_h200 and kempner_rtx partitions, while kempner_h100 is currently 2:1 oversubscribed. This matters for multi-node training that spans many GPUs. See Overview of the Kempner Cluster.

1.4.4. GPU Profiles

1.4.4.1. A100 40GB (Ampere)

The A100 is a proven training and inference GPU with third-generation Tensor Cores. Its 40 GB of memory and lack of FP8 make it best for small to mid-size models, prototyping, and established workflows.

1.4.4.2. H100 80GB (Hopper)

The H100 adds fourth-generation Tensor Cores, a Transformer Engine, and FP8, a large step up in throughput for transformer models. Its 80 GB and NVLink suit large-model training.

1.4.4.3. H200 141GB (Hopper)

The H200 shares the H100 compute architecture but pairs it with 141 GB of HBM3e and 4,800 GB/s of bandwidth, the most memory and bandwidth of the four. It is the best fit for the largest models, long context windows, and memory-bound inference.

1.4.4.4. RTX6000 96GB (Blackwell)

The RTX6000 uses the newest Blackwell architecture, with fifth-generation Tensor Cores, both FP8 and FP4, and fourth-generation RT Cores. With 96 GB of GDDR7 and 8 GPUs per node, it suits low-precision and quantization research, rendering, and simulation-heavy robotics and reinforcement learning. It connects to other GPUs over PCIe rather than NVLink.

1.4.5. Choosing a GPU by Use Case

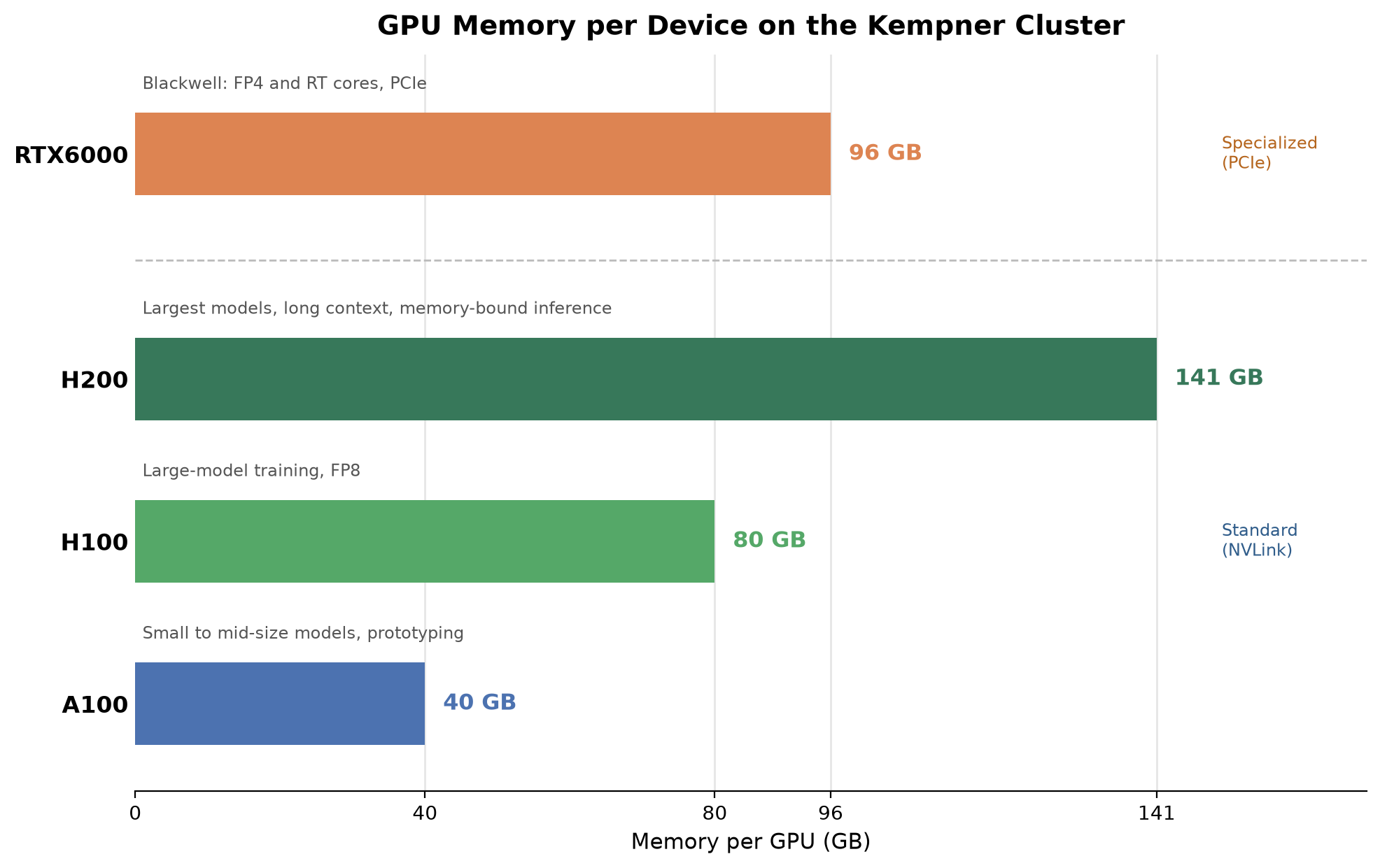

Fig. 1.3 A guide to choosing a GPU on the Kempner cluster. For standard training and inference over NVLink, pick by memory footprint from the A100 to the H200. The RTX6000 is the choice for FP4 low-precision work and for RT-core rendering, robotics, and reinforcement learning.

1.4.5.1. AI and Machine Learning

• Large-model pretraining and fine-tuning: H100 or H200, using FP8 and NVLink for throughput and multi-GPU scaling.

• Largest models, long context, and memory-bound inference: H200, for its 141 GB and highest bandwidth.

• Low-precision and quantization research: RTX6000, the only option with FP4.

• Small to mid-size training and prototyping: A100, which is widely available and well understood.

1.4.5.2. NeuroAI

• Training and evaluating brain-inspired or vision models: H100 or H200 for throughput, A100 for smaller models.

• Robotics, embodied AI, and reinforcement learning with simulation or rendering: RTX6000, for its RT Cores.

• Analysis of large neural datasets and other memory-bound pipelines: H200, for its memory capacity and bandwidth.

1.4.6. Requesting a Specific GPU on the Cluster

To use a specific GPU type, submit your job to the matching partition from the table above (for example kempner_h200 for the H200). The Kempner SLURM pages already cover the submission commands, constraints, and time limits.

See also

See Understanding SLURM for partitions and time limits, and Job Submission Basics for salloc and sbatch examples.

1.4.7. Summary: Quick Decision Guide

If you need	Use
The most GPU memory and bandwidth (large models, long context)	H200
High-throughput large-model training with FP8	H100 or H200
FP4 for low-precision or quantization research	RTX6000
RT Cores for robotics, reinforcement learning, or rendering	RTX6000
Small to mid-size training, prototyping, or established workflows	A100
